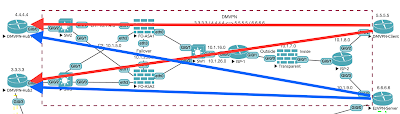

In DMVPN, we use the terms 'underlay' and 'overlay' a bit similar to GRE over IPSec where IPSec is used as the protocol to transport GRE otherwise we will have no protection. This topology will use the internet as the underlay to transport our packets, although we will create an 'overlay' using multipoint GRE to carry our site traffic (10.x.x.x) using EIGRP. Before moving onto a basic introduction to configuration and the design, DMVPN can scale very large (thousands of remote sites) and not only allows our spokes with dynamic IP addresses to participate in the design but also the configuration is very effective instead of creating static tunnels for loads of remote sites. Technically you don't actually need to run a dynamic routing protocol and have static routes but again it is very common to see a dynamic routing protocol. IPSec is also a common protocol used but it isn't actually a requirement (although it is preferred since running plain GRE isn't the best idea.).
A dynamic routing protocol (common: EIGRP or OSPF)
It allows us to create a hub-spoke like topology with spokes being able to dynamically form a VPN between other remote spokes and the Hub. We are going to be looking at a simple lab with some theory behind DMVPN without the encryption, but a basic explanation what DMVPN is:ĭMVPN (Dynamic Multipoint VPN) isn't a protocol within itself, but is crafted by the various protocols used together to achieve what DMVPN does.
The exam blueprints state you need to 'Describe' but if you've ever attempted a Cisco exam before then you might know, that doesn't mean you might get a question related to the configuration side. DMVPN is mentioned in the official CCNA guide and also in the CCNP (specifically Routing and Switching I'm talking here) but it isn't really listed to configure in the exam topics for the CCNP route.
